Heim Joint, Thread adapter, adjustable heim joint, 4link, Air shock
Heim Joint Threaded Adjuster Sleeve (1"-14 Left Hand to 3/4"-16 Right Hand) - Image 2
Heim Joint Threaded Adjuster Sleeve (1"-14 Left Hand to 3/4"-16 Right Hand) - Image 3
Heim Joint Threaded Adjuster Sleeve (1"-14 Left Hand to 3/4"-16 Right Hand) - Image 4
Heim Joint Threaded Adjuster Sleeve (1"-14 Left Hand to 3/4"-16 Right Hand) - Image 5
Threaded Adjuster, adjuster sleeve, Heim Adjustment Sleeve, Heim Adjuster, double adjuster sleeve, rodend adjustment sleeve, rod end adjuster

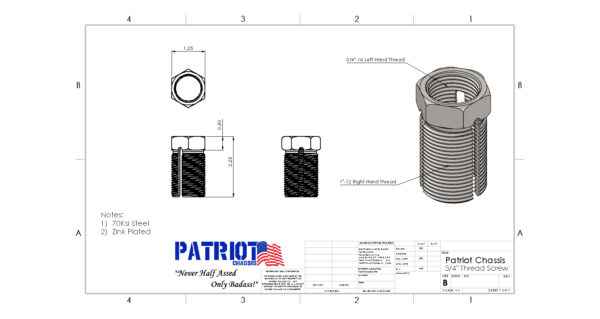

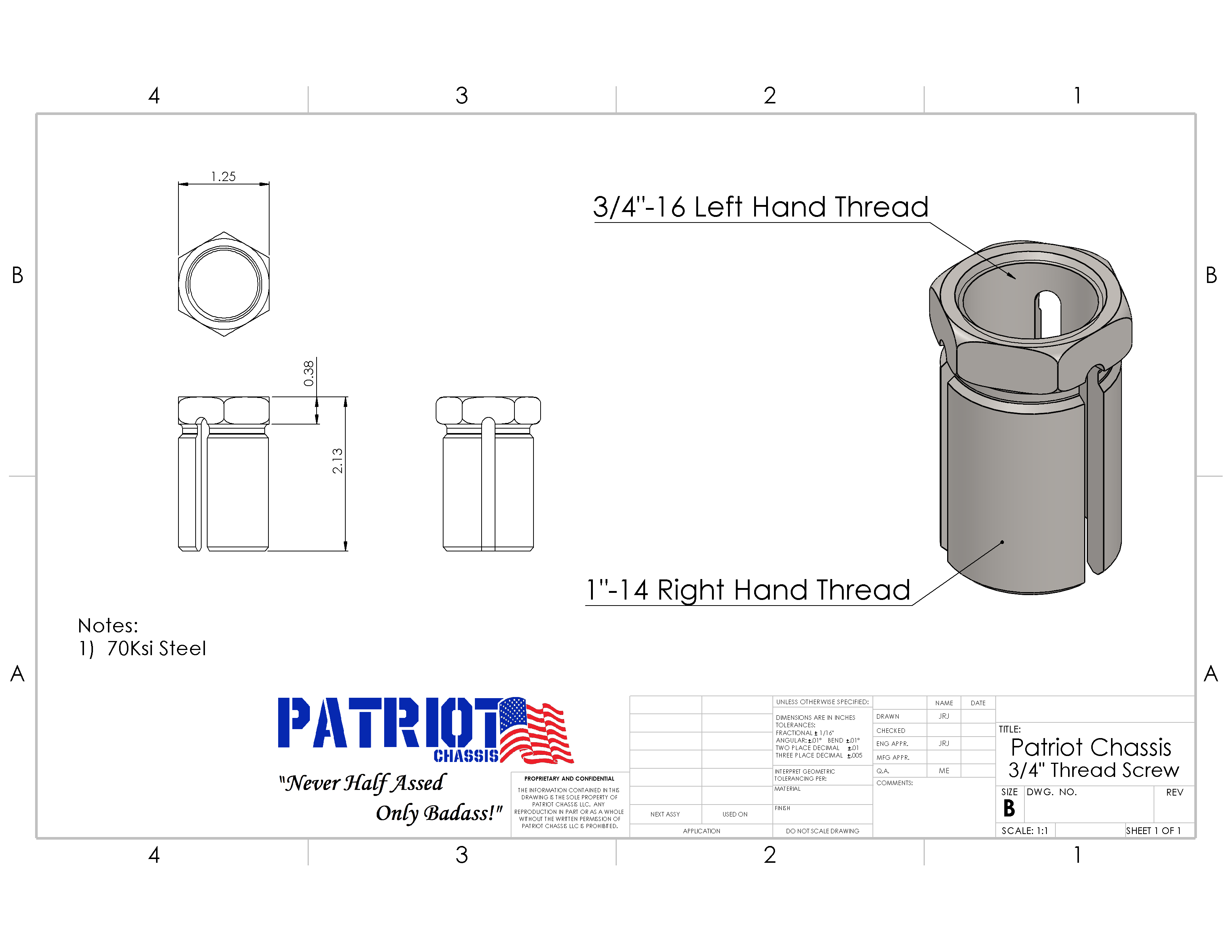

Heim Joint Threaded Adjuster Sleeve (1″-14 Left Hand to 3/4″-16 Right Hand)

$39.99

SKU PC 1372 Category: Tag

Optimize your wheel alignment and articulation with Patriot Chassis Heim Joint Adjuster Sleeves. These threaded adaptor sleeves connect the upper A-Arm to the heim joint, providing essential adjustment capabilities for achieving precise wheel alignment and optimal articulation.

Key Features:

  1. Adjustable Design: Patriot Chassis Heim Joint Adjuster Sleeves feature a threaded design that allows for easy adjustment. This feature is crucial for achieving proper wheel alignment and optimizing the articulation of your vehicle.
  2. Connection Between Upper A-Arm and Heim Joint: These sleeves serve as a crucial link between the upper A-Arm and the heim joint, ensuring a secure and adjustable connection. The design facilitates the necessary flexibility for alignment adjustments.
  3. Precise Wheel Alignment: Achieving proper wheel alignment is essential for optimal vehicle performance, tire wear, and handling. The adjustable nature of these sleeves enables fine-tuning to meet specific alignment requirements. You DO NOT have to remove the hiem joint in order to make alignment adjustments. This adjuster allows you to fine tune adjust the hiem joint in an infinite adjustment within the range of the hiem joinst adjustment capabilities. You will not have to remove the hiem joint, turn it a half turn and reisntall. Simple lossen the clamping bolts, make the fine adjustment, and tighten your locking fasteners.
  4. Enhanced Articulation: In off-road and performance applications, articulation is key for maneuverability and suspension performance. Patriot Chassis Heim Joint Adjuster Sleeves provide the flexibility needed to optimize articulation based on your driving needs.

Ensure that your upper A-Arm and heim joint work seamlessly together with Patriot Chassis Heim Joint Adjuster Sleeves. Whether you’re fine-tuning wheel alignment for on-road precision or enhancing articulation for off-road adventures, these adjustable sleeves offer the versatility needed for optimal performance. Upgrade your suspension setup with Patriot Chassis – choose Heim Joint Adjuster Sleeves for adjustable and reliable connections.

Outside Thread: 1-14 Right Hand

Inside Thread: 3/4-16 Left Hand
